The Golden Cup Machinery covers an area of 10,000 square meters. It has the capacity to produce various types of machines. Some examples include High speed sleeve machine, high-speed paper cup machines, machines for manufacturing disposable paper bowls, High Speed Automatic Double Wall Machines, and machines for the automatic formation of salad bowls. It can produce cups and bowls in different sizes and customize the machines according to your needs.The company's excellent High speed sleeve machines are sold to numerous countries such as Turkey, India, Portugal, Switzerland, and Russia. It is committed to providing high-quality products and innovative ideas. It aspires to establish long-term partnerships and ensure customer satisfaction. It will continue to manufacture superior machines and offer excellent services for continuous growth.

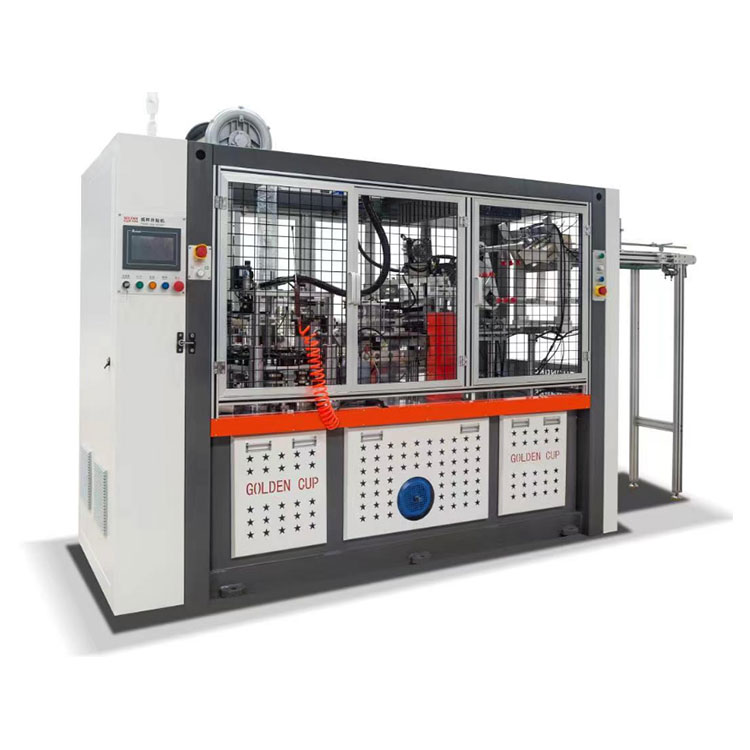

The XSL-16W High Speed Automatic Double Wall Machine is good for 4-16oz ripple cups and hollow cups. It uses a tabletop layout. This separates the forming parts and transmission parts. The machine is controlled by PLC. The whole process is watched by photoelectric sensors. The glue is sprayed by servo. It's a great equipment for making different kinds of outer-sleeves of paper cups.
Technical Parameters
Paper Cup Sizes :
4OZ-16OZ
Cup Top Diameter:
70-95mm
Cup Bottom Diameter:
50mm-75mm
Cup height:
60-135mm
Cup Speed :
100-120pcs/min
Machine Net Weight:
2800kg
Rated Power:
6kw
Air Consumption:
0.6-0.8Mpa
Machine Size:
L3300*W950*H2000MM
Paper Grams:
170-300gsm gray/white board paper
Advantages
The XSL-16W High Speed Automatic Double Wall Machine has many good points. First, it works well for 4-16oz ripple cups and hollow cups. So, you can use it in many situations.
It uses a tabletop layout. This splits the forming parts and transmission parts. This makes the High speed sleeve machine work better. It stops the parts from getting in each other's way. So, the machine is less likely to break down.
The High Speed Automatic Double Wall Machine is controlled by a PLC system. This makes it work exactly and the same every time. So, the sleeves it makes are good quality.
During the whole making process, photoelectric sensors keep an eye on the High Speed Automatic Double Wall Machine. If anything goes wrong, they find it quickly. Then you can fix it right away. This makes the production line work smoothly.
The High Speed Automatic Double Wall Machine's glue is sprayed by a servo system. This makes the glue go on evenly and exactly. So, the sleeves stick together strongly.
All these things make the XSL-16W High Speed Automatic Double Wall Machine a great choice for making different kinds of outer-sleeves of paper cups. It makes sure the output is good, the production is fast, and it works well all the time
